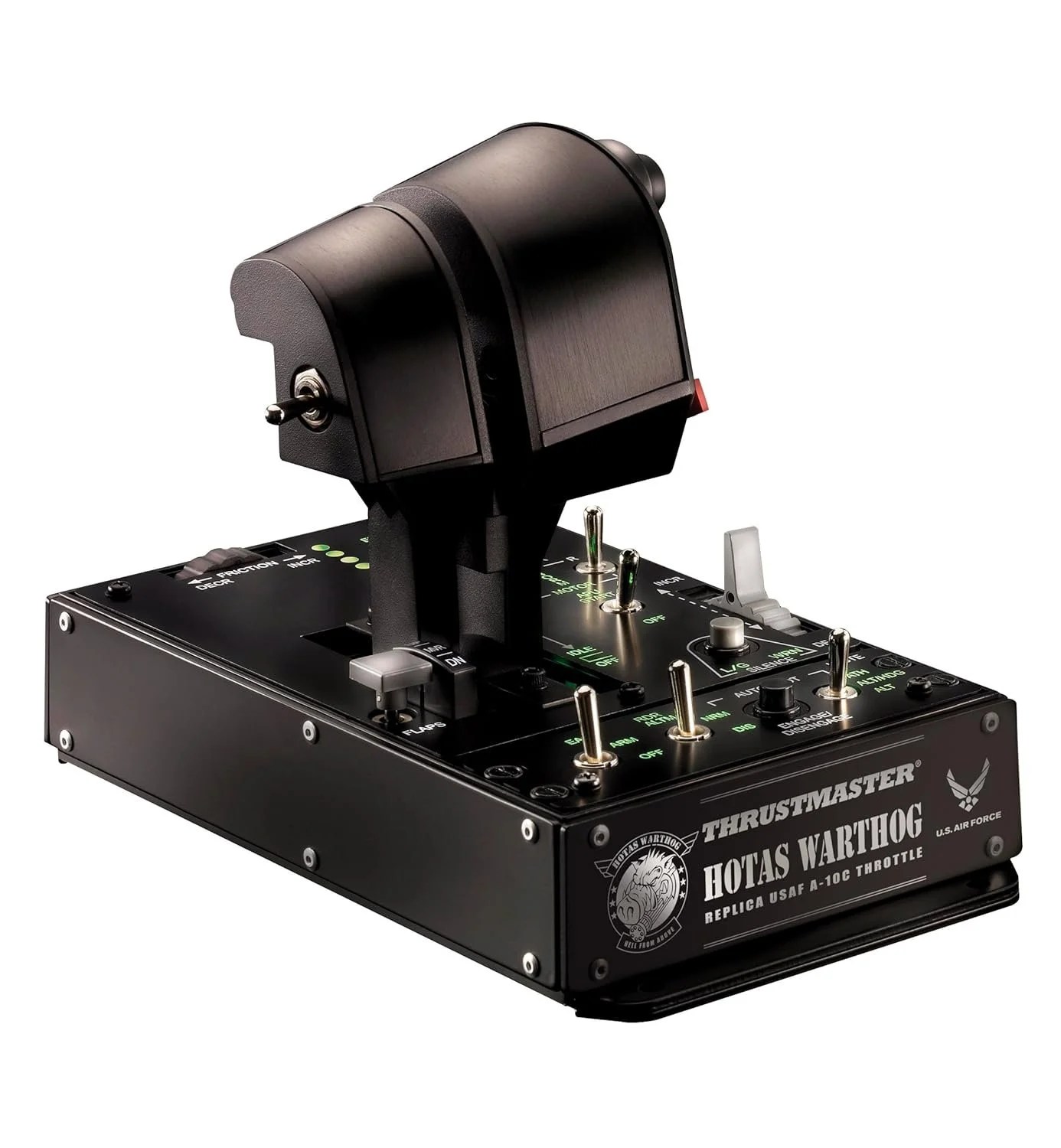

Thrustmaster HOTAS Warthog Dual Throttles | Fight Game Controller | Joystick | PC

$ 95.22

Category:
Description H.E.A.R.T HallEffect AccuRate Technology The main asset of this Thrustmaster product is unquestionably the H.E.A.R.T. technology (HallEffect AccuRate Technology), which features 3D (Hall Effect) magnetic sensors located on both throttle controls, ensuring surgical and lasting precision and 14-bit resolution (delivering 16,384 values) on each throttle. Dual replica throttles Buttons and switches alike offer realistic pressure levels, delivering unrivalled sensations. The controller features no less than 17 action buttons, as well as 1 slewp (a 2-axis ministick) with a 3D magnetic sensor and 1 multidirectional hat. Pull and Push Throttle System with Disengageable Afterburner The throttle component has also been very carefully designed, with a dual throttle system allowing for independent control of 2 motors: a locking system lets the user either attaches the 2 throttles together, or else keeps them independent of one another. The magnetic sensor technology used for the throttles (14-bit resolution, with 16384 values on each throttle) provides unrivaled precision. Switching to the Idle and Afterburner detents is carried out via a Pull and Push system, for even greater realism. The Afterburner detent is disengageable, allowing users to perfectly adapt the throttle control to the type of airplane they are piloting. The throttles feature a total of 17 action buttons, a “Point Of View” hat and a “mouse hat / slew control”. Control Panel with 5 Programmable LEDs The product’s final mechanical component, the control panel, provides an extensive number and variety of controls. It includes a friction wheel, allowing users to manually adjust the resistance of the throttles according to their own taste. It also features backlighting for functions, which users will certainly appreciate for night flights; the 5 programmable LEDs are also a plus for use in dark or low-light conditions. The base includes a “trim wheel” and 15 action buttons, including numerous push buttons with resistance identical to that on a real airplane and industrial metal switches (2 or 3 positions) with highly realistic pressure. Features

FAQs

What are the blade requirements for this saw?

Any blade from your supplier must meet the following design criteria. Using blades on this saw that don’t meet these requirements can cause equipment damage and/or personal injury.

  1. Use blades that meet applicable industrial safety code specifications.
  2. Use blades that are approved by the blade manufacturer for the material to be cut.
    Use approved dry cutting type blades in dry cutting operations and approved wet cutting type blades in wet cutting operations.
  3. Do not exceed the maximum operating speed of 1830 rpm for the S20, 1455 rpm for the S24, or the blade manufacturer’s rated speed. Blades must be speed tested to ANSI B7.1 safety code specifications.
  4. Always use blades with mounting blotters on both sides when using abrasive blades. Remove the drive pin from the arbor flange before mounting an abrasive blade.

What are the hydraulic power source requirements for this saw?

The hydraulic power source must meet the following design criteria:

  1. The flow must not exceed 8 GPM, and the pressure relief valve must not exceed 2500 psi. Failure to comply could
    cause excessive blade rpm and/or overpressurizing the system, resulting in equipment damage and/or personal
    injury.
  2. The hydraulic power source must meet the hydraulic requirements found in the product manual.

What type of maintenance is required for this saw?

Inspect the blade mounted on the saw. Remove and destroy the blade if any cracks, chips, gouges, or loose or missing segments are present. Failure to do this can cause personal injury.





Specifications

HydraSaws
ModelS14S16S20S24
Part #2001400200160020020002002400
Blade Size14 in. (35.5 cm)16 in. (40.6 cm)20 in. (50.8 cm)24 in. (61.0 cm)
Cutting Depth5.25 in. (13.3 cm)6 in. (15.2 cm)7.5 in. (19 cm)9.5 in. (24 cm)
Blade Speed4100 rpm2750 rpm1830 rpm1455 rpm
Flow5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)
Pressure Range2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)
Weight28 lbs. (12.7 kg)39 lbs. (17.7 kg)52 lbs. (23.6 kg)54 lbs. (24.5 kg)
