THRUSTMASTER TCA Sidestick X Airbus Edition

$ 92.43

Category:

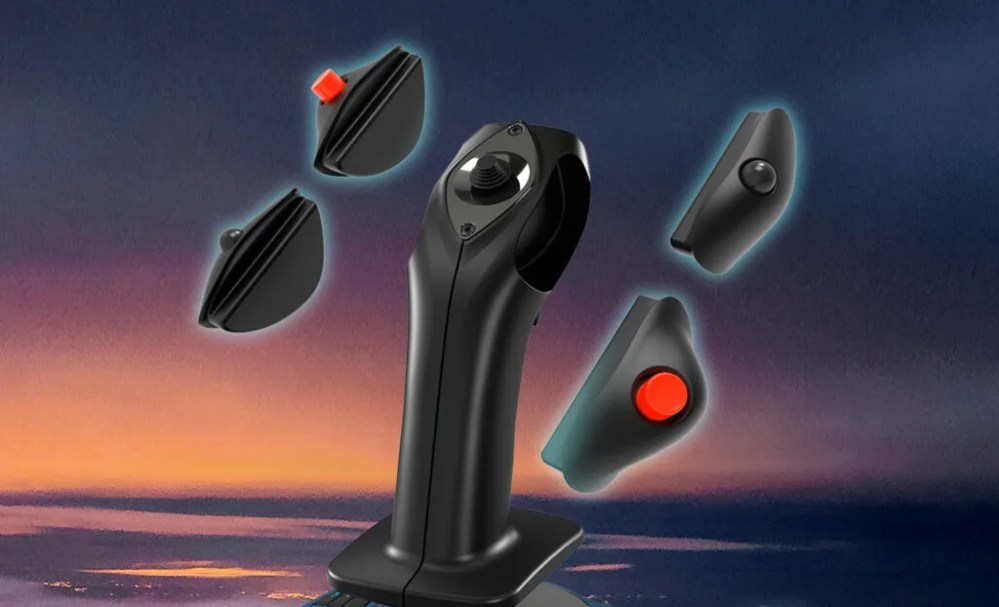

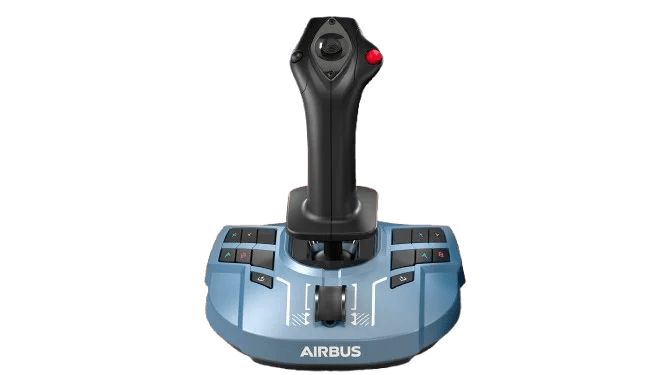

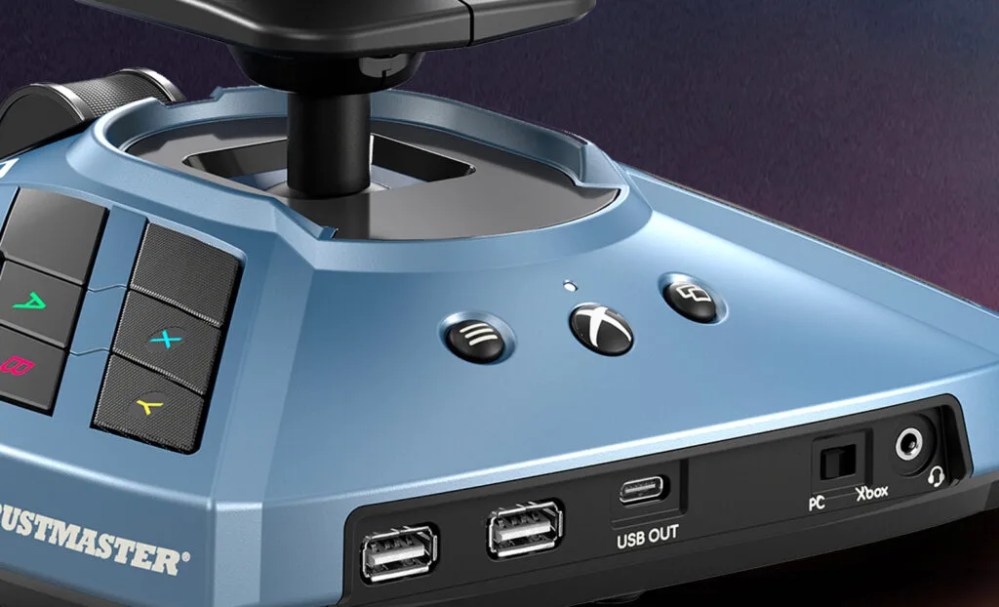

Description INSPIRED BY THE REAL AIRBUS SIDESTICK An ergonomic 1:1 scale replica inspired by the iconic Airbus sidestick, the TCA Sidestick X Airbus Edition is officially licensed for Xbox Series X|S and ensures unique handling. VERSATILE, MODULAR DESIGN You can easily adjust the sidestick’s configuration before each takeoff, to meet your requirements: captain, co-pilot, or with the sidestick in the central position for solo flight. BRING YOUR ECOSYSTEM ON XBOX! Thanks to the new Ecosystem Hub, take advantage of simplified connectivity with software support for the Thrustmaster ecosystem and make it compatible with Xbox Series X|S! Only one USB cable needs to be connected to the PC or console! NEW DESIGN AND CONNECTIVITY The TCA Sidestick X Airbus Edition has been redesigned for a better stability and to integrate new connectors including 2x USB-A ports for your ecosystem, 1x USB-C port for the power supply and a jack socket for your headset. You can swap from Xbox to PC compatibility in just a flip. ULTIMATE VERSION OF AIRBUS SIDESTICK Enjoy optimal comfort and increased precision during your flight sessions thanks to the enhanced throttle and new tact switch buttons. The throttle built into the base of the joystick includes a thrust reverser function, a unique feature on airliners helping you master your landings. READY TO TAKE OFF! TCA Sidestick X Airbus Edition includes one month of Xbox Game Pass Ultimate service. Xbox Game Pass Ultimate includes Xbox Live Gold and over 100 high-quality games. Play games like Microsoft Flight Simulator with friends on console, PC, and get an EA Play membership. Features

FAQs

What are the blade requirements for this saw?

Any blade from your supplier must meet the following design criteria. Using blades on this saw that don’t meet these requirements can cause equipment damage and/or personal injury.

  1. Use blades that meet applicable industrial safety code specifications.
  2. Use blades that are approved by the blade manufacturer for the material to be cut.
    Use approved dry cutting type blades in dry cutting operations and approved wet cutting type blades in wet cutting operations.
  3. Do not exceed the maximum operating speed of 1830 rpm for the S20, 1455 rpm for the S24, or the blade manufacturer’s rated speed. Blades must be speed tested to ANSI B7.1 safety code specifications.
  4. Always use blades with mounting blotters on both sides when using abrasive blades. Remove the drive pin from the arbor flange before mounting an abrasive blade.

What are the hydraulic power source requirements for this saw?

The hydraulic power source must meet the following design criteria:

  1. The flow must not exceed 8 GPM, and the pressure relief valve must not exceed 2500 psi. Failure to comply could
    cause excessive blade rpm and/or overpressurizing the system, resulting in equipment damage and/or personal
    injury.
  2. The hydraulic power source must meet the hydraulic requirements found in the product manual.

What type of maintenance is required for this saw?

Inspect the blade mounted on the saw. Remove and destroy the blade if any cracks, chips, gouges, or loose or missing segments are present. Failure to do this can cause personal injury.





Specifications

HydraSaws
ModelS14S16S20S24
Part #2001400200160020020002002400
Blade Size14 in. (35.5 cm)16 in. (40.6 cm)20 in. (50.8 cm)24 in. (61.0 cm)
Cutting Depth5.25 in. (13.3 cm)6 in. (15.2 cm)7.5 in. (19 cm)9.5 in. (24 cm)
Blade Speed4100 rpm2750 rpm1830 rpm1455 rpm
Flow5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)
Pressure Range2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)
Weight28 lbs. (12.7 kg)39 lbs. (17.7 kg)52 lbs. (23.6 kg)54 lbs. (24.5 kg)
