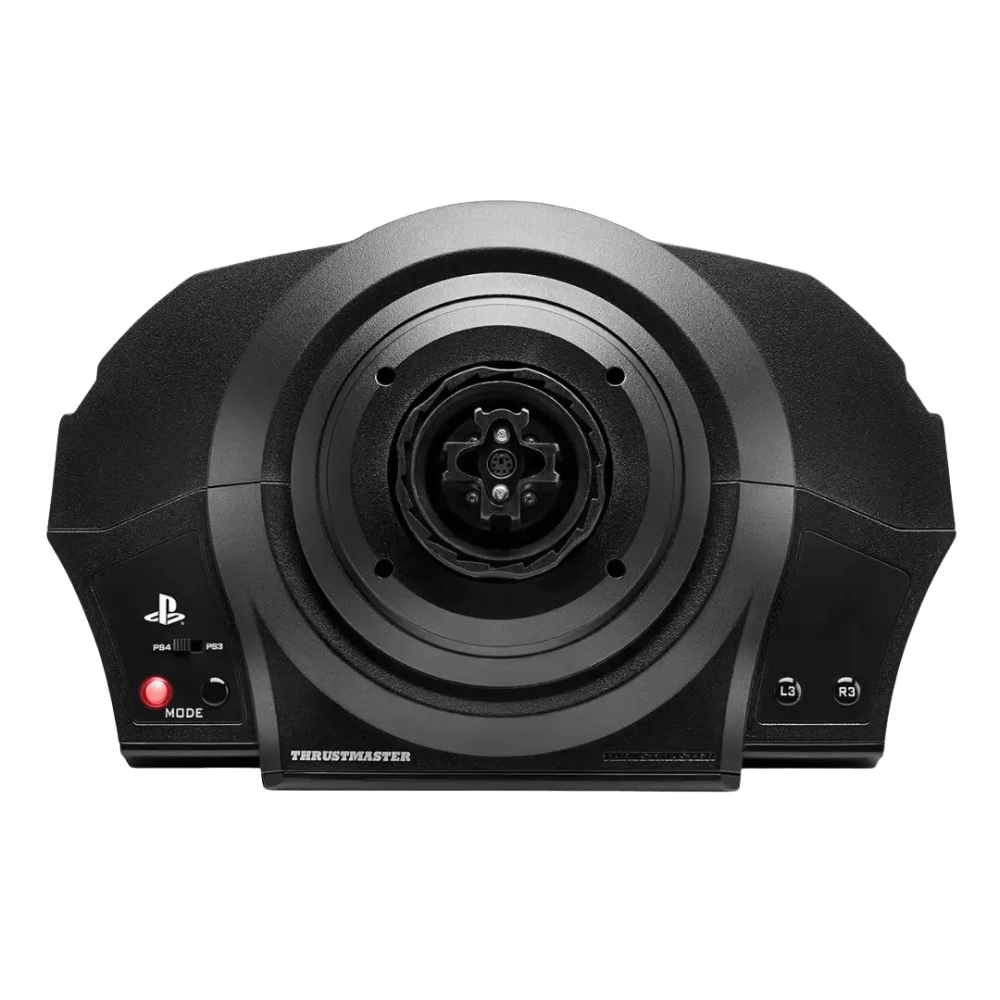

Thrustmaster T300 Racing Wheel Servo Base (Open Box )

$ 92.67

Category: Outdoor Cooking

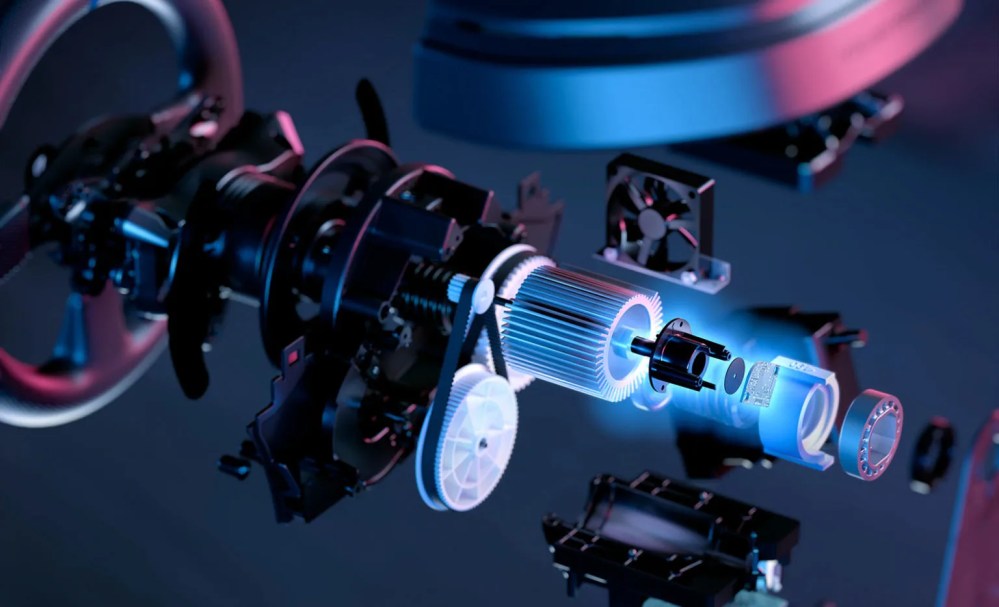

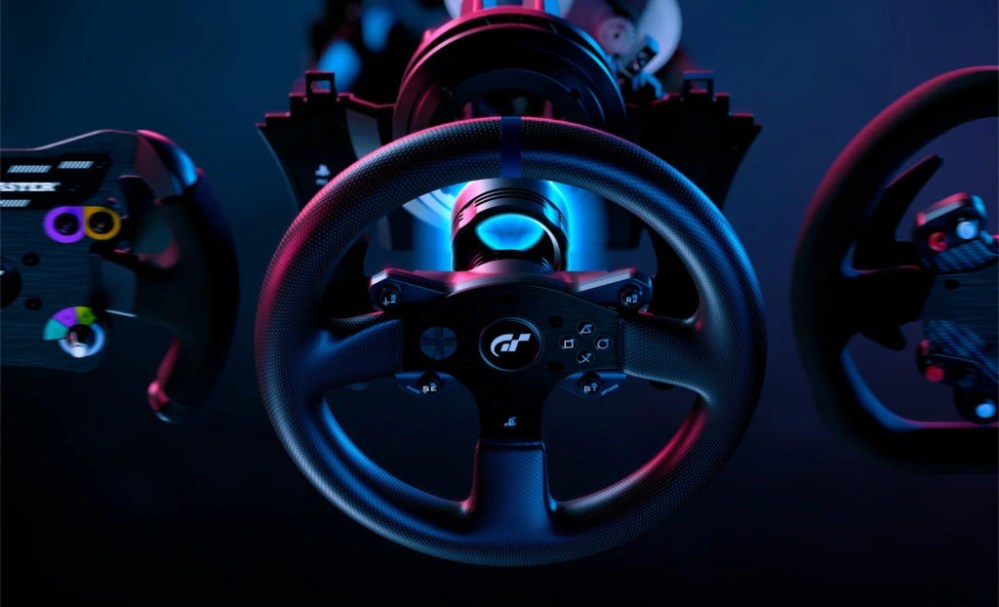

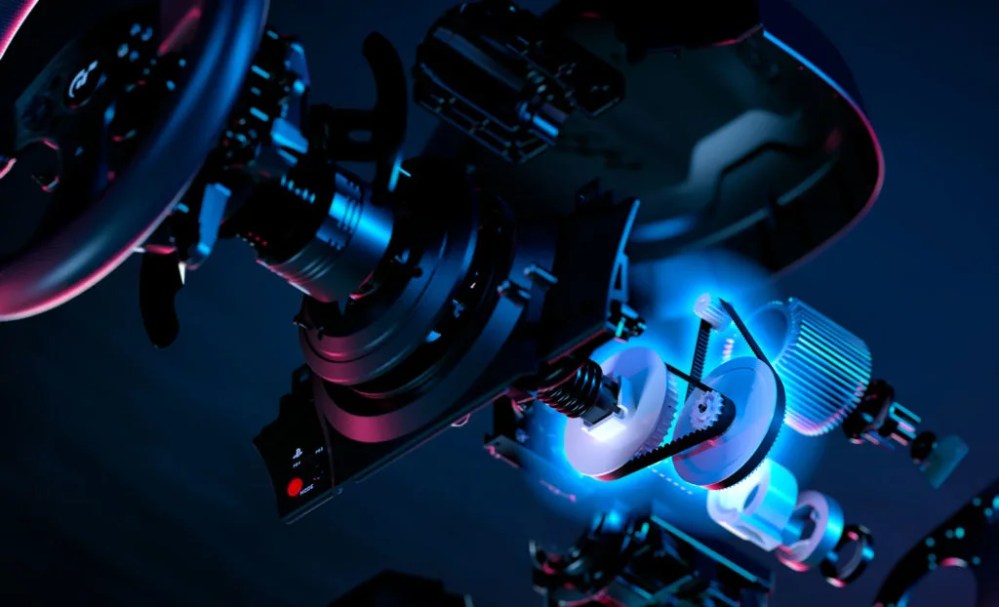

Description SIMPLE WHEEL CHANGING SYSTEM Like all products in the T300RS series (T300RS, T300RS GT and T300 Ferrari Integral Racing Wheel Alcantara Edition), the T300 Racing Wheel Servo Base features a quick and easy wheel changing system, allowing users to enjoy racing using different Thrustmaster wheels.The ecosystem of Thrustmaster add-on wheels, composed of wheels sold separately without a base or pedals, offers T300RS users a wide selection of products specially designed for different motorsport styles: from GT circuit racing to rally racing on rough terrain, all options are open to Thrustmaster racers. FAST, POWERFUL BRUSHLESS SERVOMOTOR The T300 Racing Wheel Servo Base features a brushless servomotor with nearly 25 watts of power, for fast and precise performance and impeccable control on any racing terrain.Realistic, accurate transmission of the different elements of each race directly to the user’s hands makes this motor a must-have. Contrary to a simple brushed motor, the brushless motor technology built into the T300RS series racing wheels also allows for an extremely quiet racing experience. DUAL-BELT SYSTEM The T300 Racing Wheel Servo Base features a dual-belt system which reduces disruptive noises and allows for smoother movements, for a more supple and flexible driving experience.The dual-belt mechanism allows for smoothing out of the different data elements received from the race course or circuit. PROPRIETARY MAGNETIC TECHNOLOGY Featuring Thrustmaster’s proprietary magnetic technology, for optimal wheel precision that won’t decrease over time, the reliability made possible by the T300 Racing Wheel Servo Base is recognized as a gold standard by virtual racers worldwide.Thrustmaster’s patented contactless H.E.A.R.T (HallEffect AccuRate Technology) system, without any potentiometers, allows for an unlimited product lifespan and optimal precision throughout gaming sessions: up to 16-bit resolution, with 65,536 values. Features

FAQs

What are the blade requirements for this saw?

Any blade from your supplier must meet the following design criteria. Using blades on this saw that don’t meet these requirements can cause equipment damage and/or personal injury.

Use blades that meet applicable industrial safety code specifications.
Use blades that are approved by the blade manufacturer for the material to be cut.
Use approved dry cutting type blades in dry cutting operations and approved wet cutting type blades in wet cutting operations.
Do not exceed the maximum operating speed of 1830 rpm for the S20, 1455 rpm for the S24, or the blade manufacturer’s rated speed. Blades must be speed tested to ANSI B7.1 safety code specifications.
Always use blades with mounting blotters on both sides when using abrasive blades. Remove the drive pin from the arbor flange before mounting an abrasive blade.

What are the hydraulic power source requirements for this saw?

The hydraulic power source must meet the following design criteria:

The flow must not exceed 8 GPM, and the pressure relief valve must not exceed 2500 psi. Failure to comply could
cause excessive blade rpm and/or overpressurizing the system, resulting in equipment damage and/or personal
injury.
The hydraulic power source must meet the hydraulic requirements found in the product manual.

What type of maintenance is required for this saw?

Inspect the blade mounted on the saw. Remove and destroy the blade if any cracks, chips, gouges, or loose or missing segments are present. Failure to do this can cause personal injury.

Specifications

HydraSaws
Model	S14	S16	S20	S24
Part #	2001400	2001600	2002000	2002400
Blade Size	14 in. (35.5 cm)	16 in. (40.6 cm)	20 in. (50.8 cm)	24 in. (61.0 cm)
Cutting Depth	5.25 in. (13.3 cm)	6 in. (15.2 cm)	7.5 in. (19 cm)	9.5 in. (24 cm)
Blade Speed	4100 rpm	2750 rpm	1830 rpm	1455 rpm
Flow	5-8 gpm (20-30 lpm)	5-8 gpm (20-30 lpm)	5-8 gpm (20-30 lpm)	5-8 gpm (20-30 lpm)
Pressure Range	2000 – 2500 psi (138 – 172 bar)	2000 – 2500 psi (138 – 172 bar)	2000 – 2500 psi (138 – 172 bar)	2000 – 2500 psi (138 – 172 bar)
Weight	28 lbs. (12.7 kg)	39 lbs. (17.7 kg)	52 lbs. (23.6 kg)	54 lbs. (24.5 kg)
