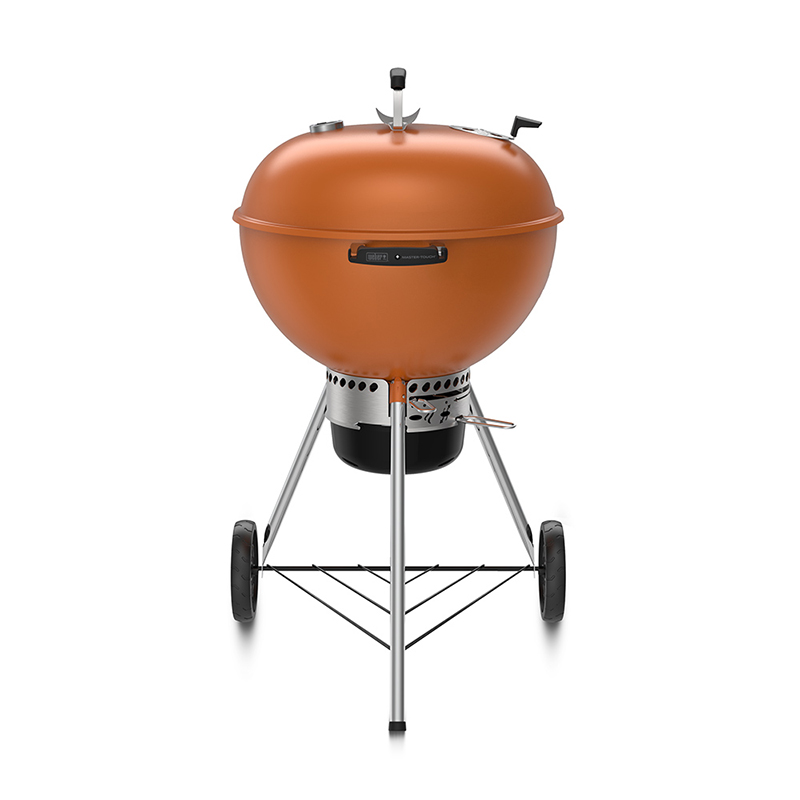

Weber® Master-Touch C-5755 Burnt Orange – Charcoal

$ 91.69

Category: Outdoor Cooking

Rust-and-crack-resistant, porcelain-enamel finish. Hinged cooking grate for adding more fuel while smoking or grilling with indirect heat, without removing the grate. Gourmet BBQ System® compatibility allows you to remove the center of the grate and replace it with specialty grillware. Tuck-Away™ lid holder for easily sliding the lid to the side of the grill. Charcoal rails organize charcoal for searing with direct heat and smoking or grilling with indirect heat. Tool hooks for hanging grilling tools, such as spatulas and tongs.

FAQs

What are the blade requirements for this saw?

Any blade from your supplier must meet the following design criteria. Using blades on this saw that don’t meet these requirements can cause equipment damage and/or personal injury.

Use blades that meet applicable industrial safety code specifications.
Use blades that are approved by the blade manufacturer for the material to be cut.
Use approved dry cutting type blades in dry cutting operations and approved wet cutting type blades in wet cutting operations.
Do not exceed the maximum operating speed of 1830 rpm for the S20, 1455 rpm for the S24, or the blade manufacturer’s rated speed. Blades must be speed tested to ANSI B7.1 safety code specifications.
Always use blades with mounting blotters on both sides when using abrasive blades. Remove the drive pin from the arbor flange before mounting an abrasive blade.

What are the hydraulic power source requirements for this saw?

The hydraulic power source must meet the following design criteria:

The flow must not exceed 8 GPM, and the pressure relief valve must not exceed 2500 psi. Failure to comply could
cause excessive blade rpm and/or overpressurizing the system, resulting in equipment damage and/or personal
injury.
The hydraulic power source must meet the hydraulic requirements found in the product manual.

What type of maintenance is required for this saw?

Inspect the blade mounted on the saw. Remove and destroy the blade if any cracks, chips, gouges, or loose or missing segments are present. Failure to do this can cause personal injury.

Specifications

HydraSaws
Model	S14	S16	S20	S24
Part #	2001400	2001600	2002000	2002400
Blade Size	14 in. (35.5 cm)	16 in. (40.6 cm)	20 in. (50.8 cm)	24 in. (61.0 cm)
Cutting Depth	5.25 in. (13.3 cm)	6 in. (15.2 cm)	7.5 in. (19 cm)	9.5 in. (24 cm)
Blade Speed	4100 rpm	2750 rpm	1830 rpm	1455 rpm
Flow	5-8 gpm (20-30 lpm)	5-8 gpm (20-30 lpm)	5-8 gpm (20-30 lpm)	5-8 gpm (20-30 lpm)
Pressure Range	2000 – 2500 psi (138 – 172 bar)	2000 – 2500 psi (138 – 172 bar)	2000 – 2500 psi (138 – 172 bar)	2000 – 2500 psi (138 – 172 bar)
Weight	28 lbs. (12.7 kg)	39 lbs. (17.7 kg)	52 lbs. (23.6 kg)	54 lbs. (24.5 kg)
