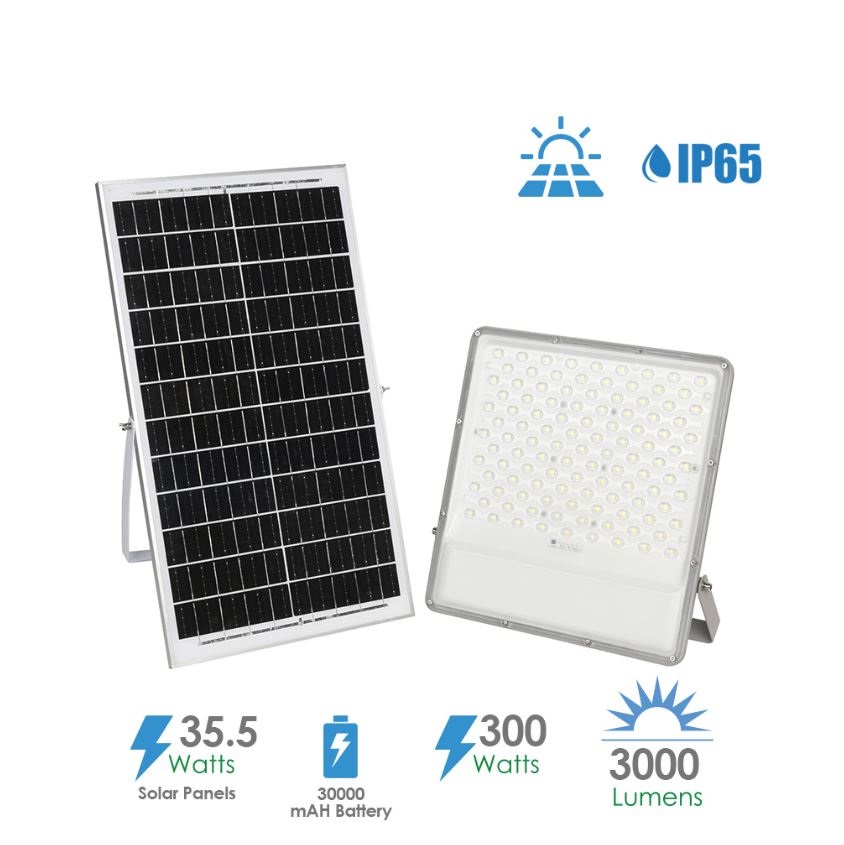

Super bright LED floodlights without any use of electricity. This powerful floodlight works without mains connection, using only solar power. Better for the environment and for your wallet, the monocrystalline silicon solar panel fully charges in 6-8 hours and can power the efficient LED floodlight for 2 to 3 days. Charging can take place even in cloudy conditions making this floodlight a reliable solution for your home – ideal for both ambient and security lighting in gardens, side passageways, sheds, patios and more. The light comes with 5m of cable connecting the solar panel and LED light, ensuring you can place the panel in an optimal place for charging and the light where you desire. The light comes with an adjustable wall mount bracket to allow for easy installation on a wall. Alternatively, it can be placed on the floor to be used as a patio light. Also included is a remote control which works up to 20-30 ft away from the light and can be used to put the lights on a timer, enable the energy saving setting and more. Made from durable aluminium and glass, both the solar panel and floodlight are waterproof, IP65 rated and will withstand severe weather conditions, the best choice for your home.

FAQs

What are the blade requirements for this saw?

Any blade from your supplier must meet the following design criteria. Using blades on this saw that don’t meet these requirements can cause equipment damage and/or personal injury.

  1. Use blades that meet applicable industrial safety code specifications.
  2. Use blades that are approved by the blade manufacturer for the material to be cut.
    Use approved dry cutting type blades in dry cutting operations and approved wet cutting type blades in wet cutting operations.
  3. Do not exceed the maximum operating speed of 1830 rpm for the S20, 1455 rpm for the S24, or the blade manufacturer’s rated speed. Blades must be speed tested to ANSI B7.1 safety code specifications.
  4. Always use blades with mounting blotters on both sides when using abrasive blades. Remove the drive pin from the arbor flange before mounting an abrasive blade.

What are the hydraulic power source requirements for this saw?

The hydraulic power source must meet the following design criteria:

  1. The flow must not exceed 8 GPM, and the pressure relief valve must not exceed 2500 psi. Failure to comply could
    cause excessive blade rpm and/or overpressurizing the system, resulting in equipment damage and/or personal
    injury.
  2. The hydraulic power source must meet the hydraulic requirements found in the product manual.

What type of maintenance is required for this saw?

Inspect the blade mounted on the saw. Remove and destroy the blade if any cracks, chips, gouges, or loose or missing segments are present. Failure to do this can cause personal injury.





Specifications

HydraSaws
ModelS14S16S20S24
Part #2001400200160020020002002400
Blade Size14 in. (35.5 cm)16 in. (40.6 cm)20 in. (50.8 cm)24 in. (61.0 cm)
Cutting Depth5.25 in. (13.3 cm)6 in. (15.2 cm)7.5 in. (19 cm)9.5 in. (24 cm)
Blade Speed4100 rpm2750 rpm1830 rpm1455 rpm
Flow5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)5-8 gpm (20-30 lpm)
Pressure Range2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)2000 – 2500 psi (138 – 172 bar)
Weight28 lbs. (12.7 kg)39 lbs. (17.7 kg)52 lbs. (23.6 kg)54 lbs. (24.5 kg)
