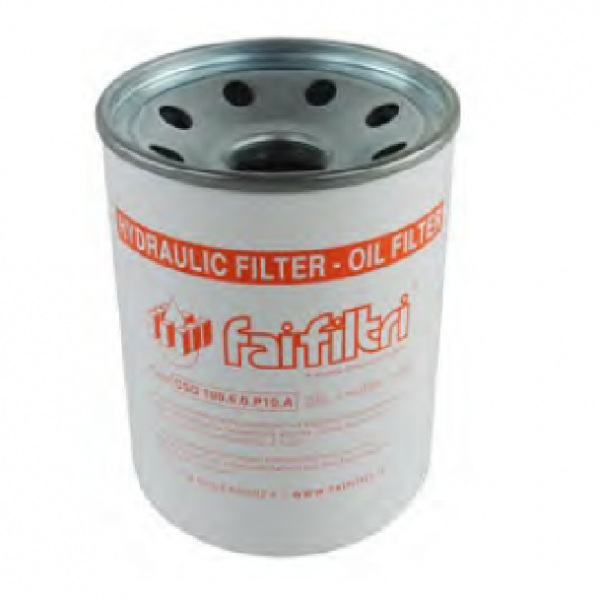

  3. Fai Filtri CS Series 5″ Filter Can – 1.1/4″ BSP
    On Sale!
    The FAI FILTRI CS Series are economical, low pressure filters with spin-on convenience and a wide range of cleanliness ratings and sizes to cover several flow rates. They can be used in both return and suction line configurations in hydraulic systems. The entire range meets international filtration standards and can be cross referenced with a wide range of other brands. Filter Can Outside Diameter = 5″ (126mm) Can Thread = 1.1/4″ BSPP or 1.1/2″ UNF Filter Can Maximum Pressure = 175 PSI (12 BAR) Micron Ratings = 3μm – 90μm (Reference Table Below) When selecting the filtration medium, consider the pressure losses: • Between 0.05 & 0.1 bar for suction line • Up to 0.3 – 0.5 bar for filters fitted on return line   Part # Micron Can Thread A (mm) B (mm) D (mm) E (mm) CS10000P10A 10µm 1.1/4” BSPP 126.0 180.0 96.5 107.0 CSG10060P10A 10µm 1.1/2” UNF 126.0 180.0 120.0 130.0 CS10000P25A 25µm 1.1/4” BSPP 126.0 180.0 96.5 107.0 CSG10060P25A 25µm 1.1/2” UNF 126.0 180.0 120.0 130.0 CS10000M90A 90µm mesh 1.1/4” BSPP 126.0 180.0 96.5 107.0 CS10000A03A 3µm 1.1/4” BSPP 126.0 180.0 96.5 107.0 CS10000A06A 6µm 1.1/4” BSPP 126.0 180.0 96.5 107.0 CS15000P10A 10µm 1.1/4” BSPP 126.0 226.0 96.5 107.0 CS15000P25A 25µm 1.1/4” BSPP 126.0 226.0 96.5 107.0 CS15000M90A 90µm mesh 1.1/4” BSPP 126.0 226.0 96.5 107.0 CS15000A03A 3µm 1.1/4” BSPP 126.0 226.0 96.5 107.0 CS15000A06A 6µm 1.1/4” BSPP 126.0 226.0 96.5 107.0     FILTREC CROSS REFERENCE FAI FILTRI FILTREC CS10000P10A A120C10 CSG10060P10A A150C10 CS10000P25A A120C25 CSG10060P25A A150C25 CS10000M90A A120T125 CS10000A03A A120G03 CS10000A06A A120G06 CS15000P10A A121C10 CS15000P25A A121C25 CS15000M90A A121T125 CS15000A03A A121G03 CS15000A06A A121G06   WARNING – IMPROPER USE OR SELECTION OF THE PRODUCTS/EQUIPMENT OR SYSTEMS DESCRIBED CAN CAUSE PERSONAL INJURY, DEATH AND/OR PROPERTY DAMAGE. SAFETY PROCEDURES MUST BE APPLIED PRIOR TO INSTALLATION, COMMISIONING AND/OR OPERATION OF EQUIPMENT AND MACHINERY. Share this: Share on X (Opens in new window) X Share on Facebook (Opens in new window) Facebook Like this:Like Loading… Related
