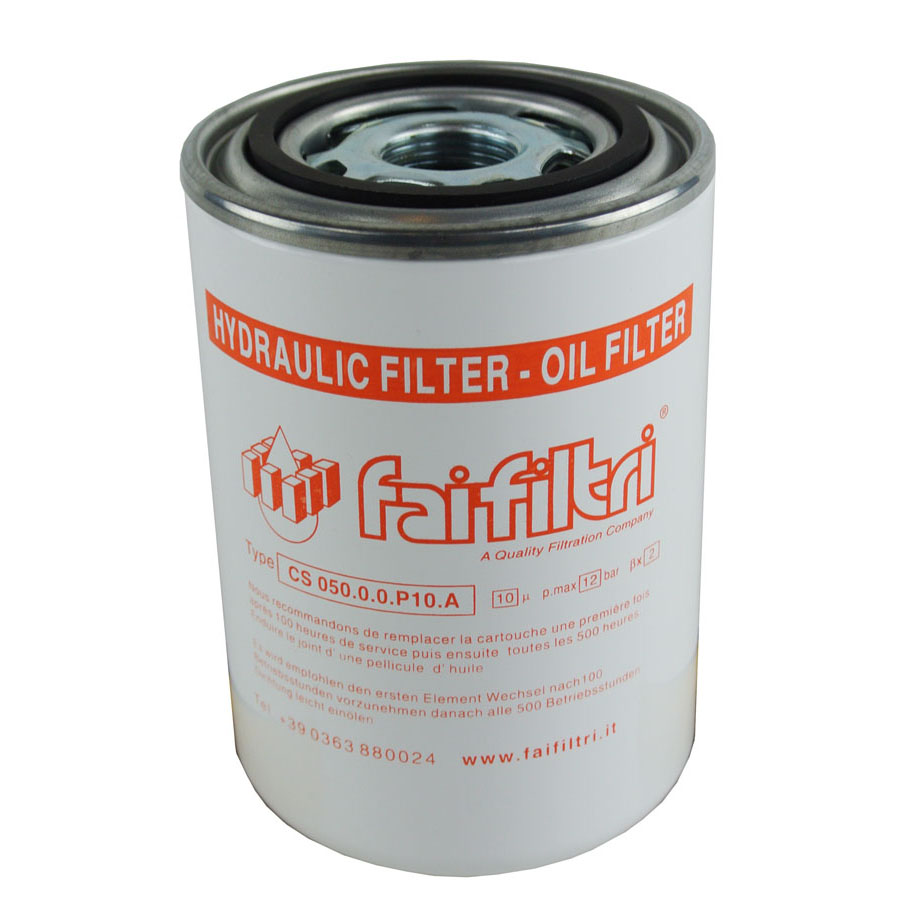

The FAI FILTRI CS Series are economical, low pressure filters with spin-on convenience and a wide range of cleanliness ratings and sizes to cover several flow rates. They can be used in both return and suction line configurations in hydraulic systems. The entire range meets international filtration standards and can be cross referenced with a wide range of other brands. Filter Can Outside Diameter = 4″ (96mm) Can Thread = 3/4″ BSPP Filter Can Maximum Pressure = 175 PSI (12 BAR) Micron Ratings = 3μm – 90μm (Reference Table Below) When selecting the filtration medium, consider the pressure losses: • Between 0.05 & 0.1 bar for suction line • Up to 0.3 – 0.5 bar for filters fitted on return line   Part # Micron Can Thread A (mm) B (mm) D (mm) E (mm) CS05000P10A 10µm 3/4” BSPP 96 148 62.50 71.50 CS05000P25A 25µm 3/4” BSPP 96 148 62.50 71.50 CS05000M90A 90µm mesh 3/4” BSPP 96 148 62.50 71.50 CS05000A03A 3µm 3/4” BSPP 96 148 62.50 71.50 CS05000A06A 6µm 3/4” BSPP 96 148 62.50 71.50 CS07000P10A 10µm 3/4” BSPP 96 210 62.50 71.50 CS07000P25A 25µm 3/4” BSPP 96 210 62.50 71.50 CS07000M90A 90µm mesh 3/4” BSPP 96 210 62.50 71.50 CS07000A03A 3µm 3/4” BSPP 96 210 62.50 71.50 CS07000A06A 6µm 3/4” BSPP 96 210 62.50 71.50     FILTREC CROSS REFERENCE FAI FILTRI FILTREC CS05000P10A A110C10 CS05000P25A A110C25 CS05000M90A A110T125 CS05000A03A A110G03 CS05000A06A A110G06 CS07000P10A A111C10 CS07000P25A A111C25 CS07000M90A A111T125 CS07000A03A A111G03 CS07000A06A A111G06   WARNING – IMPROPER USE OR SELECTION OF THE PRODUCTS/EQUIPMENT OR SYSTEMS DESCRIBED CAN CAUSE PERSONAL INJURY, DEATH AND/OR PROPERTY DAMAGE. SAFETY PROCEDURES MUST BE APPLIED PRIOR TO INSTALLATION, COMMISIONING AND/OR OPERATION OF EQUIPMENT AND MACHINERY. Share this: Share on X (Opens in new window) X Share on Facebook (Opens in new window) Facebook Like this:Like Loading… Related
